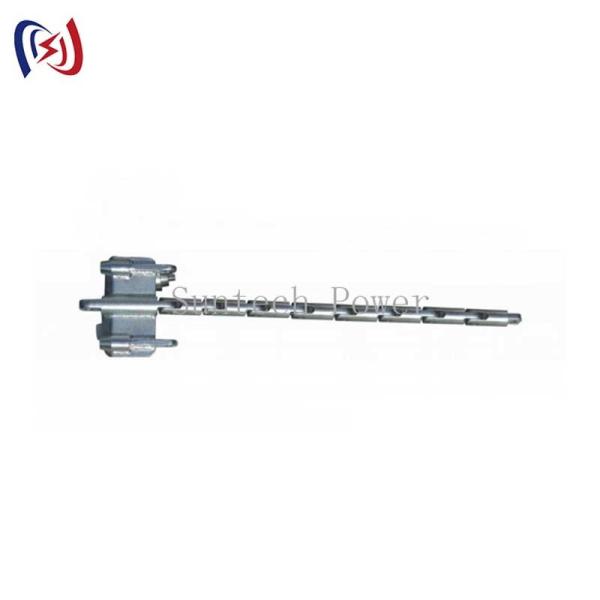

80KN - 180KN Two Bundled Conductor Headboard Transmission Quick Disconnect

Name: 80KN 180KN Two Bundled Conductor Headboard Transmission Quick Disconnect
Brand: Suntech
Price: 1 USD

Quality 80KN - 180KN Two Bundled Conductor Headboard Transmission Quick Disconnect for sale

Brand Name : Suntech

Model Number : SZ2-8

Certification : ISO9001

Place of Origin : Ningbo, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 1000 PCS/Month

Delivery Time : 7-15days

Packaging Details : Wooden Case

Name : Head Boards for two Bundle Conductors

Item No. : 17220-17226

Rated Load : 80-180KN

Applicable Sheave Width : 75-125mm

Weight : 17-90KG

Feature : Conductor are independent/ Poising sheave

Warranty : 1 year

Uses : Apply to tension stringing or mechanical traction stringing construction.

Explain : Special size can be customized.

Contact Now

Head Boards For Two Bundle Conductors Transmission Line Stringing Tools

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc

This running boards, has two types, independent, poising sheave, applicable tackle width of 75-125mm wheel, it can be customized according to the specificaiton of other stringing blocks.while the rated load max reached to 18T, this model is only for two bundle conductor in the operation site. But our plant, also made the head boards, to the three, and four conductos, they all have the features, to avoid torsion strain accumulation during line stringing.

Item number	Model	Rated Load (KN)	Applicable Sheave Width (MM)	Weight (KG)	Feature
17220	SZ2-8	80	75	17	Conductor are independent
17221	SZ2-8A		100	19
17222	SZ2-8B		110	19.5
17223	SZ2A-8	80	100	90	Poising sheave
17223T	SZ2A-8T	80	110	100	Poising sheave
17224	SZ2B-13	130	110	55	Conductor are independent
17225	SZ2C-13	130	110	50	Conductor are independent
17226	SZ2B-18	180	125	90	Conductor are independent
